Getting a perfect square is not easy, but with batter boards, it’s just made simple. If you’re wondering what a batter board is and what its used for then this detailed guide is made just for you. To give you an idea upfront, a batter board is a simple yet effective tool that is used in construction and surveying to align things in the right place and right direction.
By the way, there is a high chance that you may have seen someone using a batter board in constructing a deck or retaining walls, as many people have a deck. If you’re someone like me who has no deck outdoors don’t worry as I’m going to explain everything about it. So let’s explore what it is in a simple way.
What is a batter board?
Batter boards are fundamental tools in construction and surveying. They are used to get accurate and precise level reference points for building foundations, walls, and hundreds of other structures as well. Don’t think it’s a modern day tool and comes up with technical stuff. It’s not the case.
It’s quite simple and everyone can use it but the styles of using it may differ. So, As a construction worker, builder, or surveyor, the goal is to have those accurate reference points to get the job done and align layouts without any errors. That’s what the batter board is all about.
On top of that, A batter board becomes so useful in sloppy and uneven areas where you can’t do anything about getting perfect or accurate alignments.
Components of batter boards
Are you thinking about learning about batter boards to ease your work? My suggestion would be to have a good knowledge about its components and how it’s built. So you may know what’s going on and how everything works.
Starting with its components, Batter boards consists of wooden stakes, string lines, and horizontal boards. These are the main ones. All elements work together to establish a precise grid or framework that is enough to get accurate alignments.
Visit our store for 10% off our Tools here.

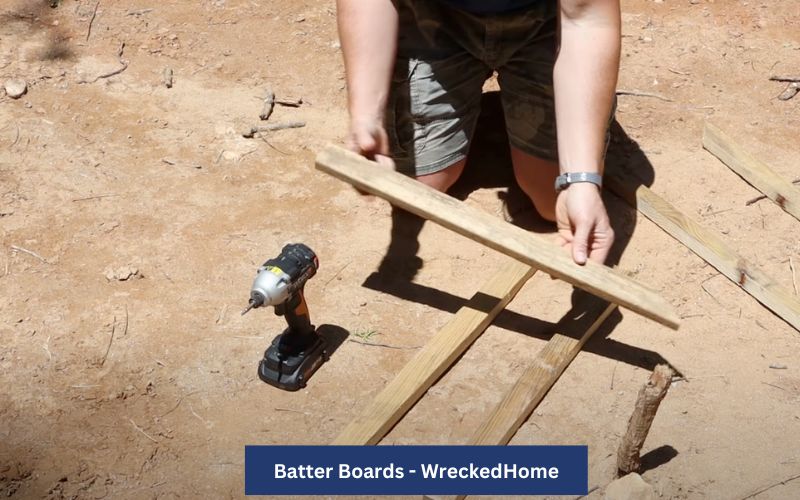

Construction of batter boards
It’s time to see how things actually work and how we can build a batter board and set it up. Before taking a step, the construction crews have to measure the area with great accuracy to avoid errors when placing boards.
Some people think that batter boards are pre-built tools that we just ground in the area and start doing the work, No, we have to build it from scratch and it comes in different sizes and heights depending upon the construction work.
So after measuring the area, the boards need to be grounded at a specific interval of distance with the right height. It also requires attention as a tiny mistake can lead to serious problems. It’s important to ensure that the stakes are vertically aligned at the correct height to have an accurate reference plane.

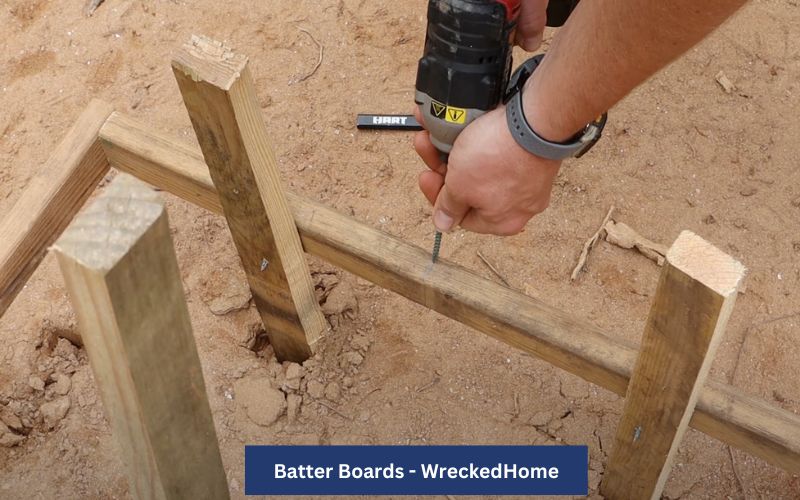

Moving on, the horizontal boards are attached to the stakes at a certain height and should be aligned vertically. One more thing to know about the boards is that they can be made up of metal or wood, It doesn’t matter a lot.
You can adjust batter boards vertically and align them to get an accurate reference point for the foundation. Lastly, the string lines are connected between the stakes and complete the setup of a basic and very simple batter board.
While finishing it, keep an eye on string lines as these are used to get the measurements. If you’ve done everything right but couldn’t get the string lines right, you might get into trouble. Try to stretch the lines a little bit to get more accurate and precise output.
Let’s summarize it.
1. First of all, make the area clean and remove debris, vegetation, and any kind of obstacles.
2. Ground the wooden stakes at the perfect spots so everything aligns in an accurate manner. These stakes usually define the outer boundaries of the structure.
3. Next you have to align the stakes vertically and that’s so important. You can use a level to do so.
4. The horizontal boards must be placed on the stakes. This is done by keeping a uniform height throughout and leveling things so that it is vertically aligned perfectly.
5. Tie the string lines with the stakes and make a grid with straight and level lines. That’s where you’re going to get some of the key reference points.
6. Now use string lines and horizontal boards to take measurements and mark key reference points on the construction site. This is how you can get excavation guides, foundation pouring, and an idea about construction phases.
Purposes and uses of batter boards
Now we’ve discussed almost everything about batter board, it’s time to take a look at its most common uses. By the way, it’s been used in tons of construction projects and it’s not possible to cover each of them but we’ll see some very useful purposes of a batter board.
Home construction
We talked about the foundation and how important it is to have a strong and sturdy one. Batter boards help construction workers get the perfect shape that looks nice and reduces the chances of getting the wrong layouts which may cause serious issues afterward.
Moreover, batter boards are not just something for the foundation and layouts, they actually work as a reference point throughout the construction process. That’s what I was thinking, so make sure to not think like me and know about its importance.
Road and bridge construction
It’s a tool that is being used at very large scales as well such as roads and bridges. Yeah, I am not kidding you. It helps you to get the roads straight and reduces the chance of making the roads bumpy and sloppy. When you hear about a batter board you think Oh, it’s a tool used in home construction to align things and get them straight as an arrow, but believe me it’s far from just a home tool.
You may know that one of the biggest issues with the roads is always going to be the drainage system and guess what? A batter board is so handy and useful in this case. It can be used to establish the correct slope and make sure that water always flows away from the road or bridge.
Landscaping
As you guessed, A batter board can be used for the perfect design and getting accurate layouts in the garden. It’s important to think of the design and the overall structure before planting anything so you may not get into trouble. Landscaping also includes hard-scape elements such as a patio, deck, and retaining walls. A batter board can be useful in aligning and structuring these elements as well.
Batter Board is your best friend in DIY landscaping. It can really release the stress of getting the alignments and layouts wrong and in a disorder.
Best practices for using a batter board
How amazing it’ll be if you get some tips and know about what are the best practices for using a batter board and everything in a single article? So keeping that in mind let’s move to some of the best practices for using a batter board.
The first one is planning the right layouts for a batter board. You need to get it accurate and aligned perfectly so you can use it as a tool that’ll further help you in aligning and maintaining the structures and layouts.
Now you’ve got the exact layout for your batter board make sure to do some power show and ground the stakes firmly so the stakes may not get moved around while working. After that, you have to make sure the horizontal boards are aligned correctly.
Horizontal boards are your visual reference points, and they need to be perfectly level and square. Attach them to the stakes horizontally and it should create some kind of rectangular frame. Take a level to ensure they’re straight and flat enough.
After that, we have String lines that serve as your guides for alignment and elevation. Fix them to the batter boards, running them along the edges and diagonals of your project area. Take your time to adjust the strings until you’re completely satisfied with it. String lines are the blueprint of your construction or surveying projects, so be patient and attentive while doing so.
The last best practice is to maintain the layout of your batter boards throughout the construction process and keep checking if everything is at its position and not getting loose.
That’s it. These are some of the easiest to digest practices while working with batter boards.
Conclusion
In the end, a batter board is such an amazing tool that’s used to align and structure the layouts without using any additional technical stuff. It can be used in small and as well as large projects. It has a number of applications, I would say very useful applications. From patios to making straight roads, it can be used anywhere.
One important thing to know, is that there is no doubt about the accuracy and precision of this tool but it depends on how you set it up. If you get it wrong then nothing is going to work and you might face many errors. So it’s important to set it up with great attention.
